High-Precision 3D Measurement Solution for Medical Long-Axis Components (Bone Screws & Medical Needles)
Customer Challenges & Inspection Demands:
Medical long-axis components (such as orthopedic bone screws, dental implants, and medical needles) require micron-level tolerance control. Our client faced challenges in checking ultra-fine profiles and required an automated vision inspection system to clear the following bottleneck:

• Automatic Edge Detection: Fast and repeatable edge capturing without human error.

• High-Resolution Imaging: High contrast imaging to inspect micro-threads and complex cylindrical geometry.
Product physical image
Medical Precision Long-Axis Components Measurement Scheme
Measuring Result
Test results

1.Image effect demonstration

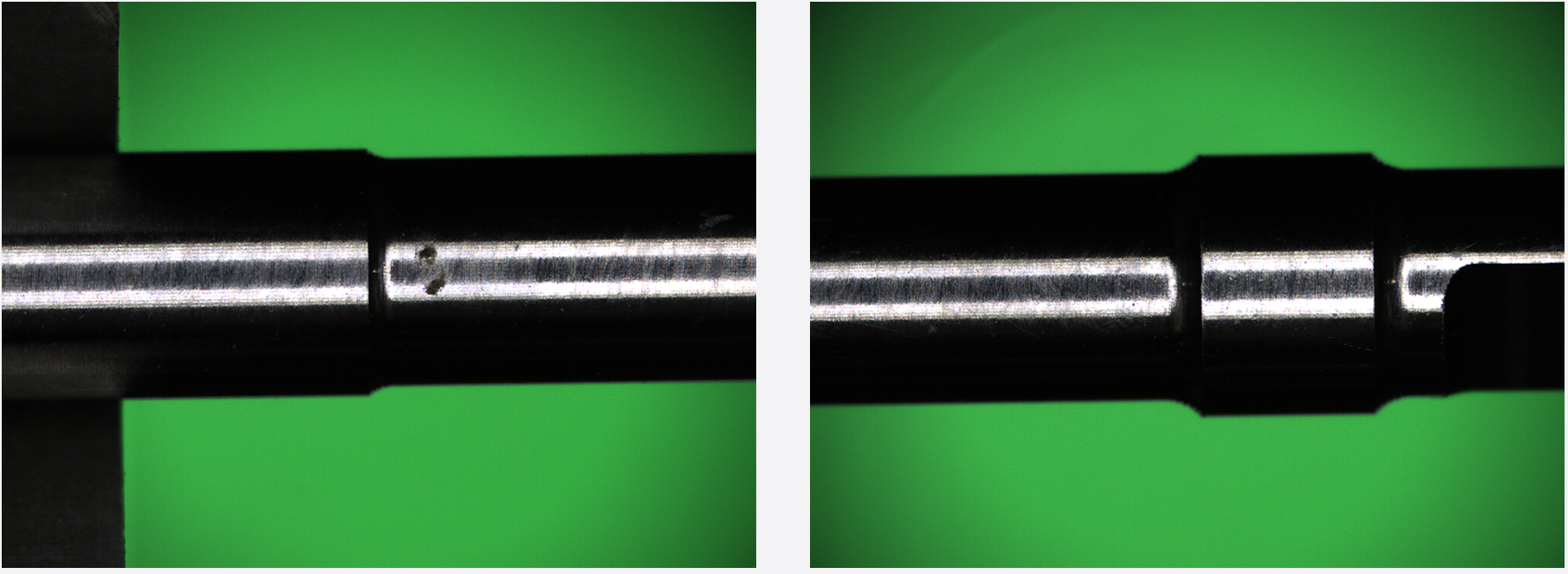

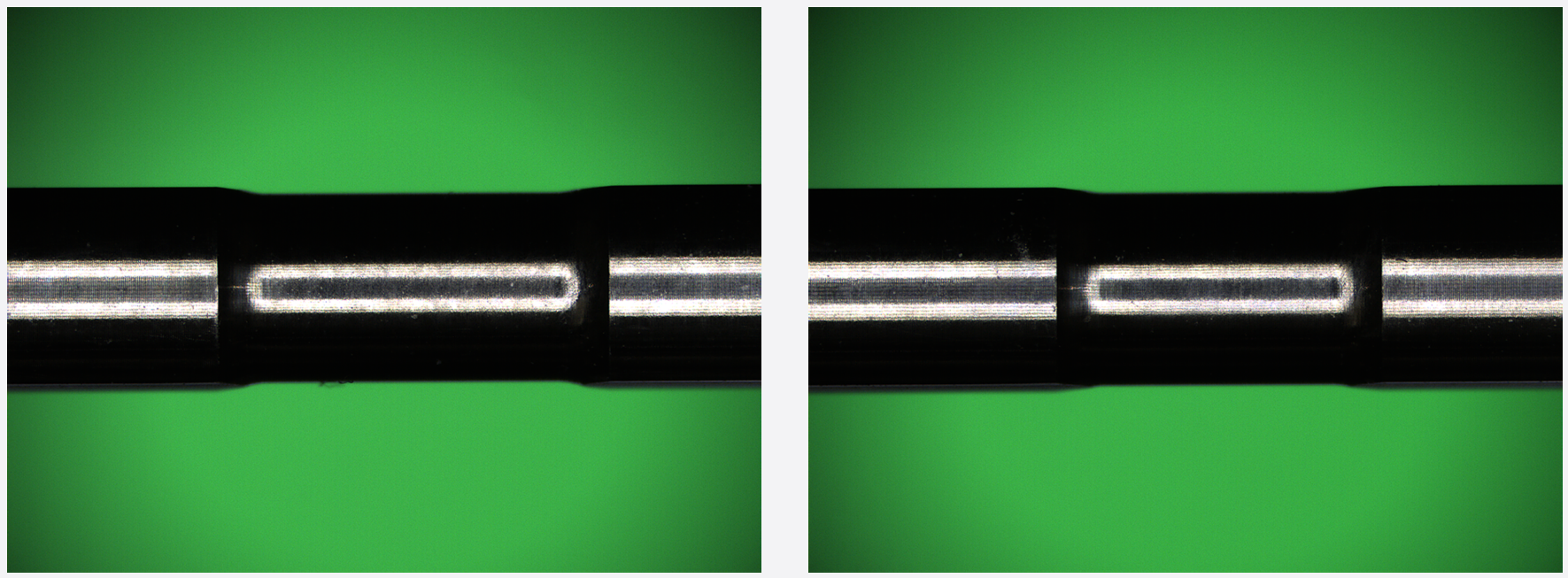

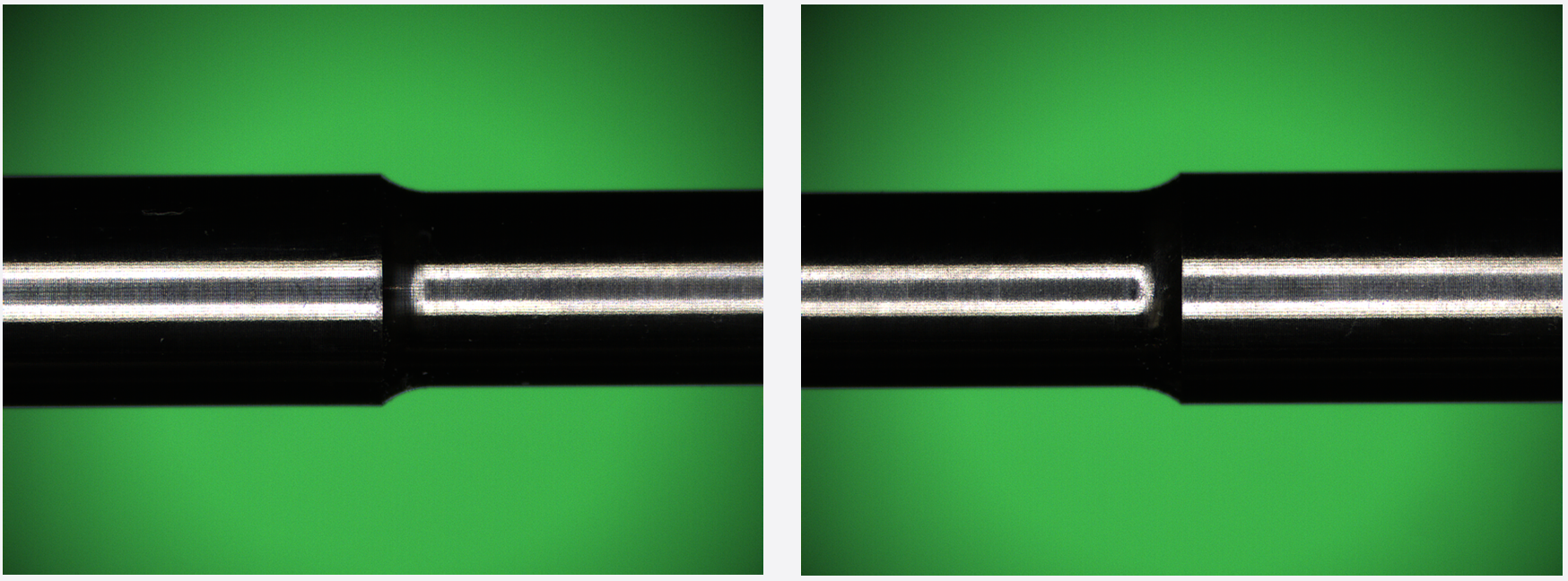

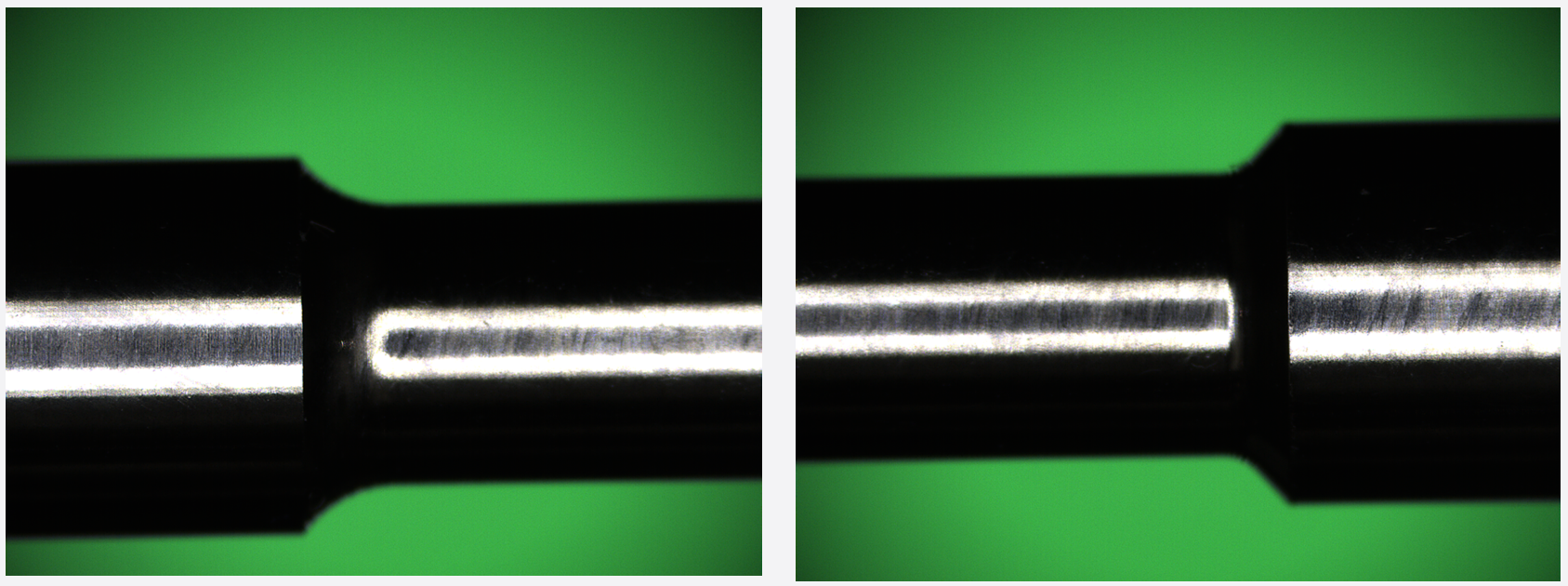

Our advanced optical sub-pixel edge detection technology delivers ultra-sharp contrast (as shown in the green backlighting images). The software automatically recognizes boundaries with micron accuracy, eliminating shadow interference on cylindrical parts.




2.Test process video


The demo video illustrates the real-time inspection workflow. Utilizing COBEKK's specialized metrology algorithms, the system automatically measures dimension within 30 seconds, generating instant compliance reports for medical manufacturing standards.


.

Test Conclusion

Based on the testing requirements of this medical component, COBEKK highly recommends the AC Series Fully Automatic Vision Measuring Machine paired with our proprietary i-Sobit metrology software.

Key Benefits for Medical Manufacturers:
  • CNC automatic control for high-throughput batch inspection.
  • Customizable reporting format to meet strict medical traceability requirements

    (ISO 13485 compliant environments).
